The electric powder feeding system for more than 200 tons of powder forming machine design

Using Mitsubishi AC servo system, low inertia motor

According to the press axis angle movement, the control precision of 0.1mm, maximum speed of 300mm stroke /0.4 seconds

With a sound signal interlocking mechanism, safety limit function

Main menu

By the PC machine as the upper machine

VisualC++ program design

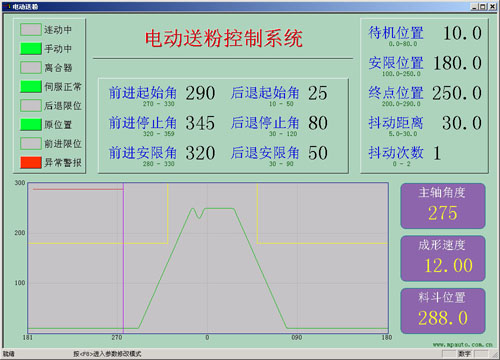

Instant running track diagram

Simple operation

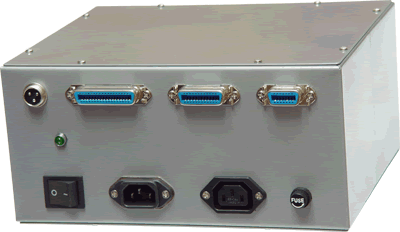

Controller using CPU structure, ensure the high speed response

10bit shaft angle encode input

Incremental servo motor coding input

Command pulse output

Compressor control linkage signal

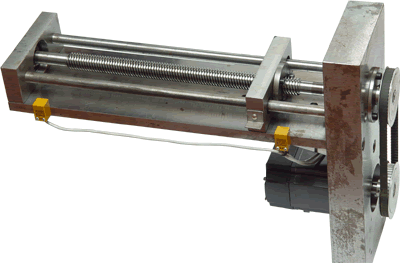

Mechanical transmission

350mm stroke
